Milwaukee Side Worktop Assembly Instructions

Milwaukee Side Worktop Assembly Instructions

What is included (per one side table):

  1. 2 Adaptors

  2. 2 Folding shelf brackets

  3. 4 sets of screws (4 of M5x12mm screw, 4 of M5 lock washer and 4 of M5 flat washer) for the assembly of adaptors to brackets

  4. 6 Phillips flat head wood screws for the assembly of wood to brackets

  5. (OPTIONAL) 16 x 12 x 0.75” clear-coated wood table

IMPORTANT NOTE: The side table can hold up to 10 kg (22 lbs) when the weight is evenly distributed across the surface and the toolbox is filled to ensure stability. Uneven distribution of weight or an unfilled toolbox may result in table breakage and/or toolbox tipping. Please ensure you assemble the brackets and adaptors correctly, and do not use the products if they are cracked, chipped, or broken. Please exercise caution and use your discretion when using these brackets to ensure safe usage. Feel free to contact us with any questions or concerns.

Step-by-Step Assembly Instructions:

Step 1: Assembly the adaptors and folding shelf brackets together by following steps A to C.

1A. Prepare the 4 sets of screws: Take the provided screws and insert a lock washer followed by a flat washer onto each Phillips Pan Head Machine screws.



1B. Ensure the orientation of the adaptor and brackets is correct for assembly. Confirm that the two holes in the adaptor align with the holes in the stem of the bracket.

1C. Once properly aligned, join the adaptor and bracket together by tightening them using the prepared screw sets. Repeat this process for the other adaptor-bracket assembly.



Step 2: Install the prepared adaptor-bracket on the preferred side of your Packout by following steps A to D.

2A. Adaptors come with preassembled set-screw. Ensure that the set screw is in line with the product and not protruding out of the product to be able to successfully insert the bar through.

2B. Unscrew the aluminum bar using a Phillips head screwdriver. Pull down the aluminum bar to create enough space for the adaptor to fit in. Align the product with the aluminum bar, and insert and push the part onto the bar.

2C. Push the aluminum bar back to its original place and tighten the aluminum bar using a Phillips head screwdriver.

2D. Adjust the adaptor on the bar at the desired position and tighten the set screw using an Allen Wrench. DO NOT OVERTIGHTEN, YOU MIGHT DAMAGE THE PART!!

2E. Repeat this process for the other adaptor-bracket assembly.

Step 3: Assembly of the wood on the brackets.

3A. Extend the brackets and place the wood piece on them, adjusting its position as desired. From the underside of the wood table, use a pencil to mark the areas where the wood will be screwed to the brackets once the final position is determined.



3B. Remove the wood piece and place it on a flat surface. Lightly screw a provided Phillips flat head wood screw into the marked drill spots. Do not fully tighten the screws at this stage; this is only intended to mark the areas for assembly.

3C. Place the wood piece back on the brackets, ensuring the marked areas align with the bracket openings. Tighten each Phillips flat head wood screws securely, but avoid over-tightening to prevent damage to the wood.

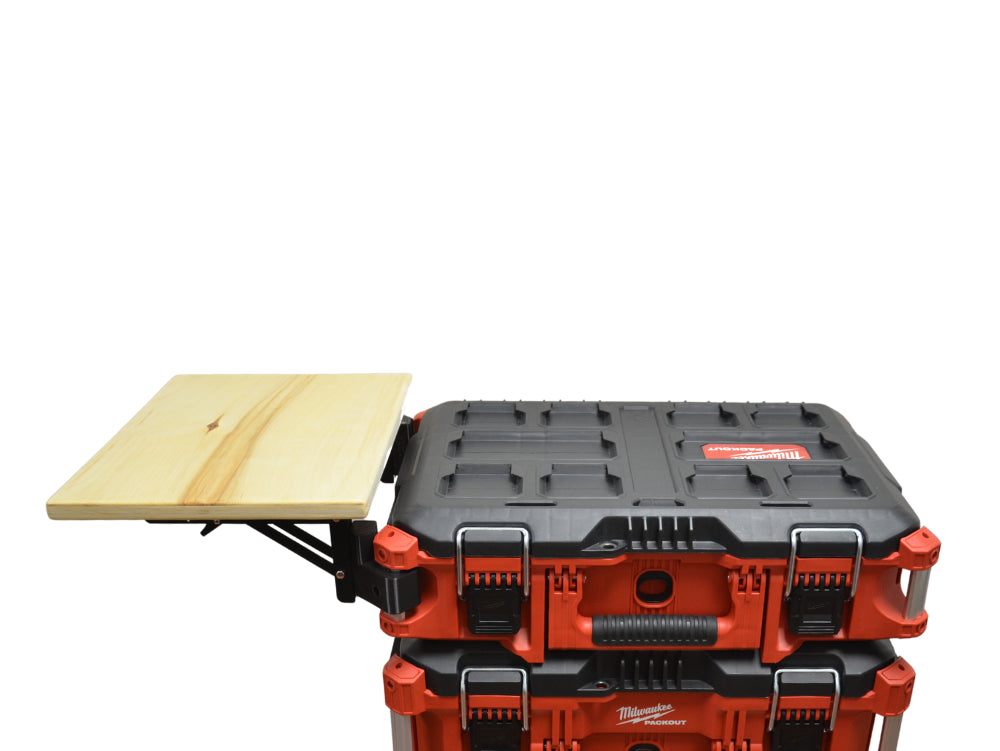

You are done! Enjoy your new side table!
